PIONEER

A10AE INTEGRATED AMPLIFIER

£199.00 £229.00

A10AE INTEGRATED AMPLIFIER

£199.00 £229.00
Earn 99 Reward Points. Learn More...

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

- +
Order in the next to get it by
Details
  • SKU: 14689242
  • Brand: PIONEER
  • Type: Amplifier - Integrated
  • Availability: Out stock
Description

A10AE INTEGRATED HI FI AMPLIFIER

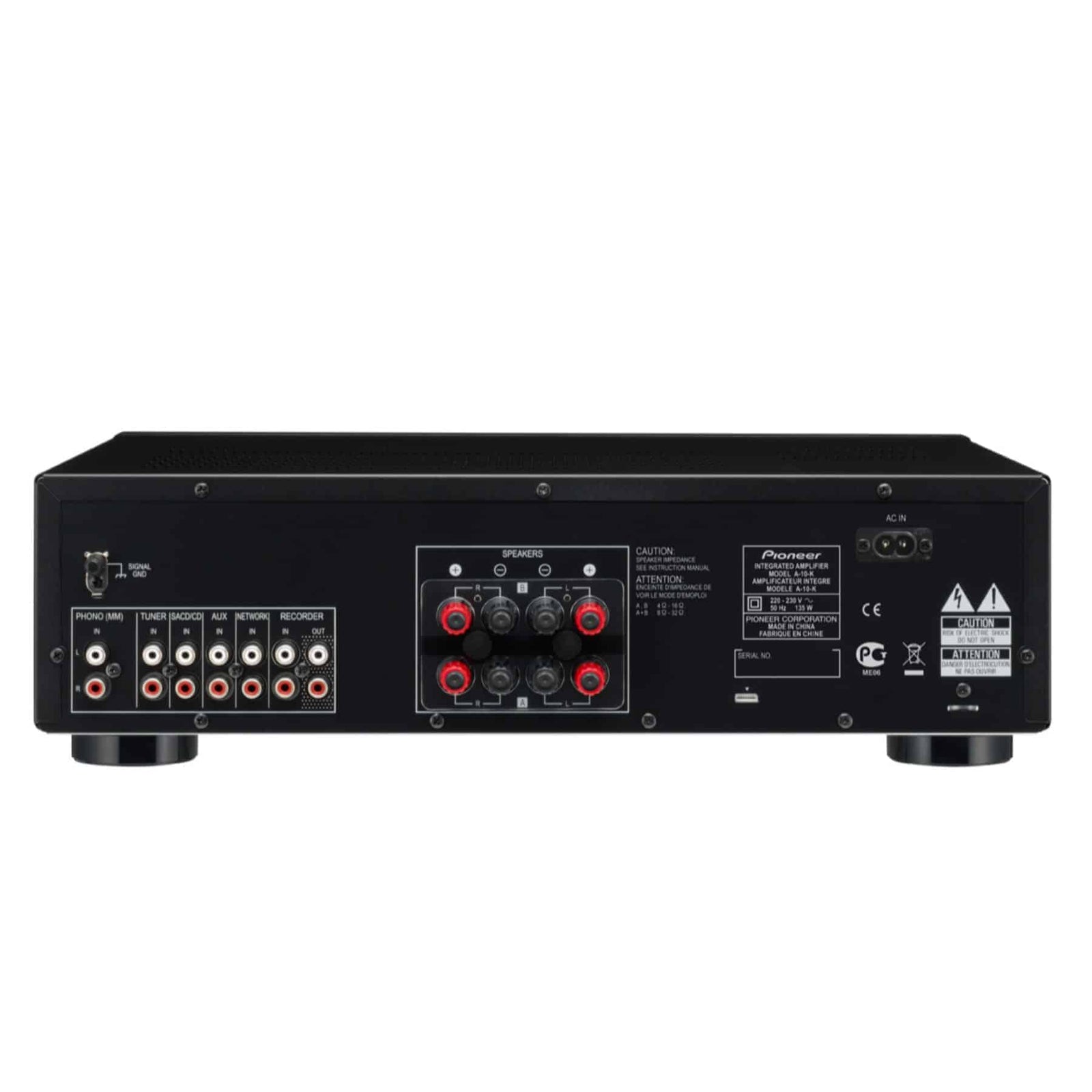

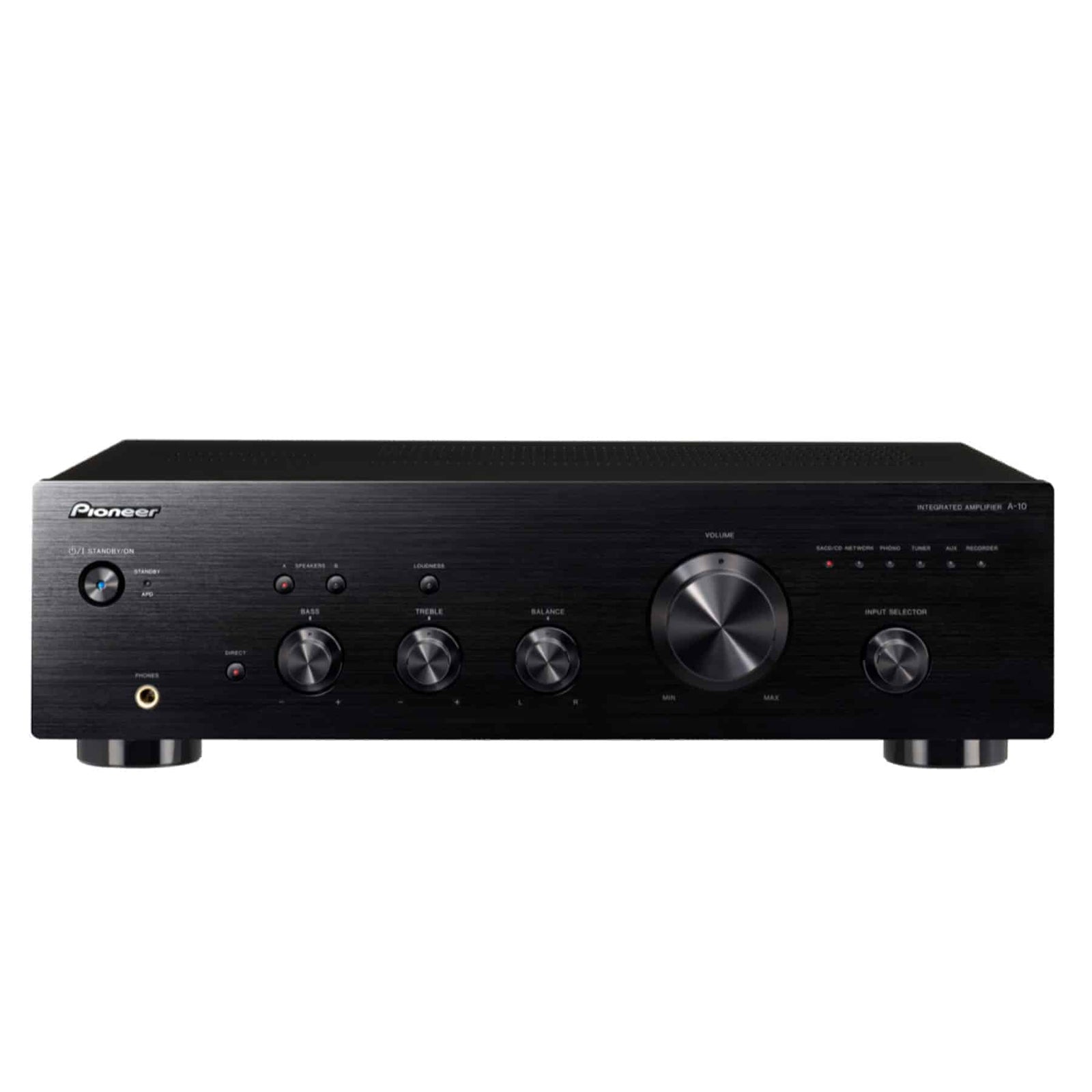

The A-10 direct energy design amplifier with symmetrical construction offer excellent, high quality sound, wrapped in understated, technical elegance. The front panel comes with control knobs for volume, bass/treble/balance and input source selection. A range of tactile buttons fine-tune loudness, direct mode and speaker A/B. The rear panel provides immediate connectivity to aux-in, network, recorder, speaker A+B and ‘source direct mode’ devices.

Audio Features

  • Direct Energy Design Amp
  • Symmetrical Power Amp
  • Clean Ground Construction
  • Isolated Power Supply
  • Source Direct Mode
  • Speaker A, B, A+B Selector
  • Auto Power Down



Operating Features

  • 50 W + 50 W (20 Hz-20 kHz, 0.1 % THD, 4 ohms)
  • 30 W + 30 W (20 Hz-20 kHz, THD 0.05 %, 8 ohms)
  • THD: 0.01 % (Rated Output -3 dB, 8 ohms, 1 kHz)
  • Guaranteed Speaker Impedance (2 Speaker Terminals): 4-16 ohms (A or B), 8-32 ohms (A+B), 4-16 ohms (Bi-Wiring)
  • Frequency Response: 5 Hz-100 kHz, 0 dB/-3 dB, 20 Hz-20 kHz, ±0.5 dB (RIAA Eqalisation) MM
  • Power Requirements: AC 220-230 V 50 Hz
  • Power Consumption: 135 W
  • Power Consumption During Standby: 0.3 W



Connections

  • Analogue Audio Input (PHONO (MM), TUNER, SACD/CD, AUX, NETWORK, RECORDER)
  • Audio Output (RECORDER, PHONES)
  • AC Inlet



Dimensions and Weight

  • Dimensions (W x H x D): 435 x 128 x 360 mm
  • Weight: 6.7 kg
