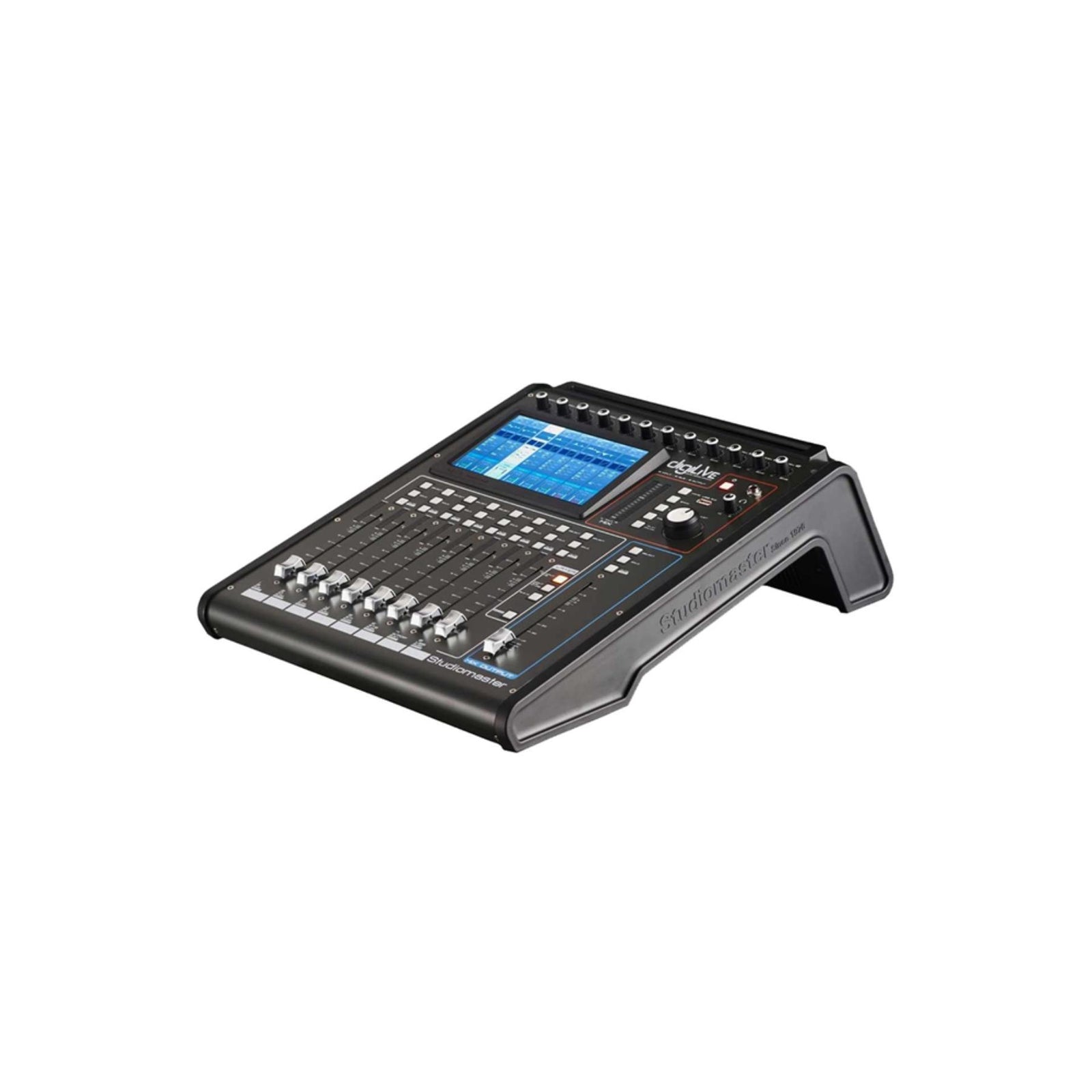

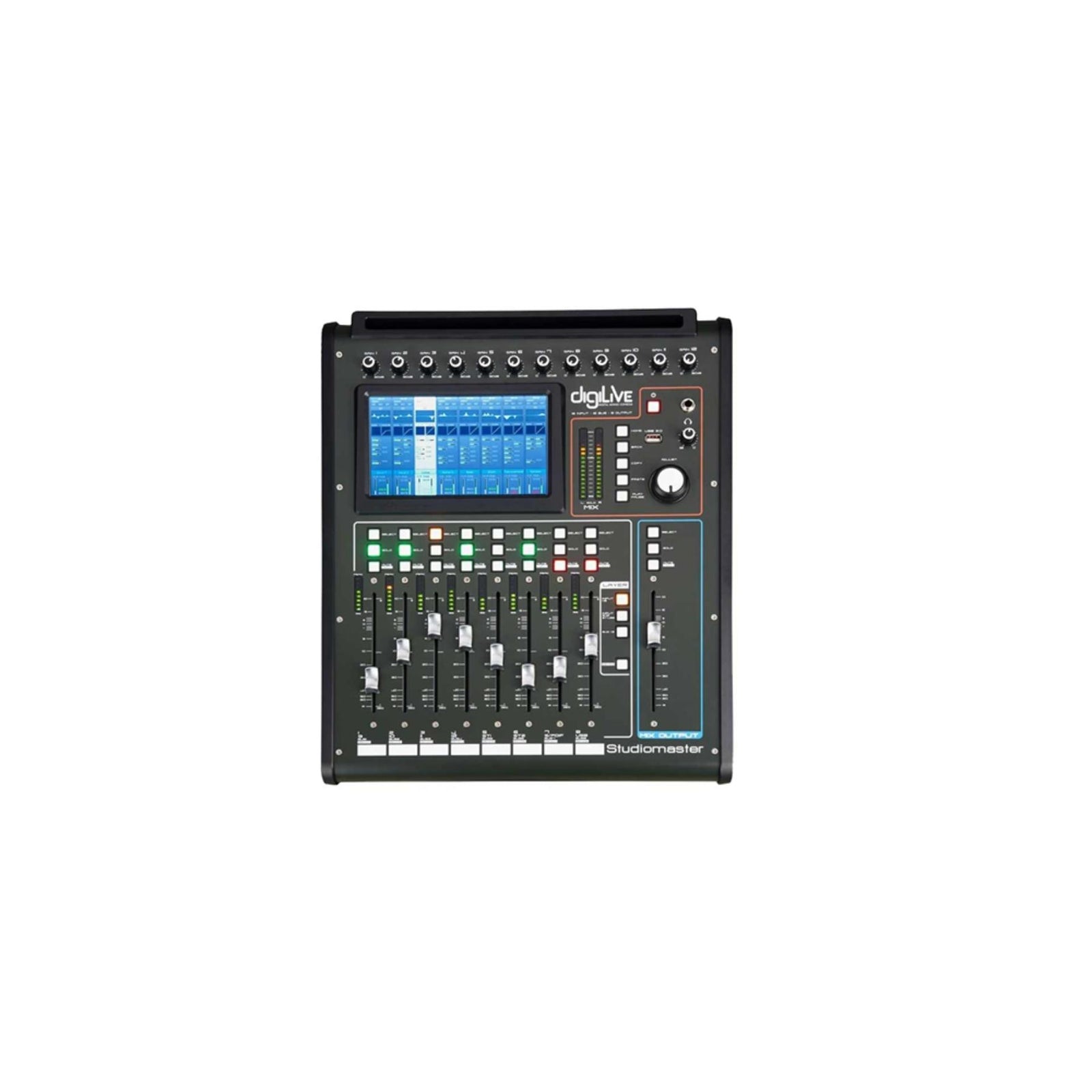

DigiLive 16 Digital Mixer

Features

• 16 ANALOGUE INPUTS 12 mic input and 2 stereo input channels

• 16 INTERNAL busses available

• 9 MOTORIZED FADERS for recall and precise control

• 8 STEREO FX add reverb, delay, modulation or 31band graphics to busses or channels

• 8 SMART OUTPUTS each output can be set to any bus

• DIGITAL I/O USB playback/record, S/PDIF in/out and AES-EBU output

• 7”TOUCH SCREEN high resolution to clearly see the information you need

• SCENE SAVING complete desk (except gain) settings can be saved

• IPAD CONTROL full remote operation from the IOS APP

• EXTERNAL PSU for reliable noise free operation

The DIGILIVE 16 offers ultra-compact digital audio mixer combines the power of a hardware mixer with the beauty and simplicity of a touch-screen control surface.

The DIGILIVE 16 is designed to be quick, simple and intuitive to use. ln addition to the 7-inch high-resolution touch-screen where you can access all your features, 1/0 options and effects, the mixer features full 100mmmotorised faders that can recall scene settings at a moments notice. Full control is also available remotely via Wi-Fi using your iPad so you are free to mix anywhere in the venue.

INTELLIGENT USER INTERFACE

> simple to use 1024 x 600 7" touchscreen with clear and informative graphics

> clear visual representation of all channel and mixer settings

> use either touchscreen or encoder to adjust any setting

> 100mm motorized faders, with one touch layer selection

> solo, mute and channel select buttons for each channel

MIXING MADE EASY

> input and output channel metering is clear with the high definition screen

> both input and output levels clearly displayed

> pre and post fader metering

RECORDING AND PLAYBACK

> built in media player and recorder

> playback from either USB

> record from any smart output

SMART OUTPUTS

> 16 internal busses with 8 balanced XLR outputs

> comprehensive routing facilities to maximise mixer flexibility

> simple and clear selection and routing

ADVANCED ALGORITHMS

> 4 band fully parametric EQ

> each band adjustable between 20Hz and 20kHz

> variable gain and Q, and ability to save EQ library presets

> automatic real time analysis (RTA) on 31 band graphic equaliser

DYNAMICS AND EFFECTS ON EVERY CHANNEL

> fully adjustable gate and compression

>4 stereo effects available with reverb, delay, modulation and 31 band graphic EQ

> simple to use and informative visual representation of effect or dynamic

> depth and gain reduction metering for accurate adjustment

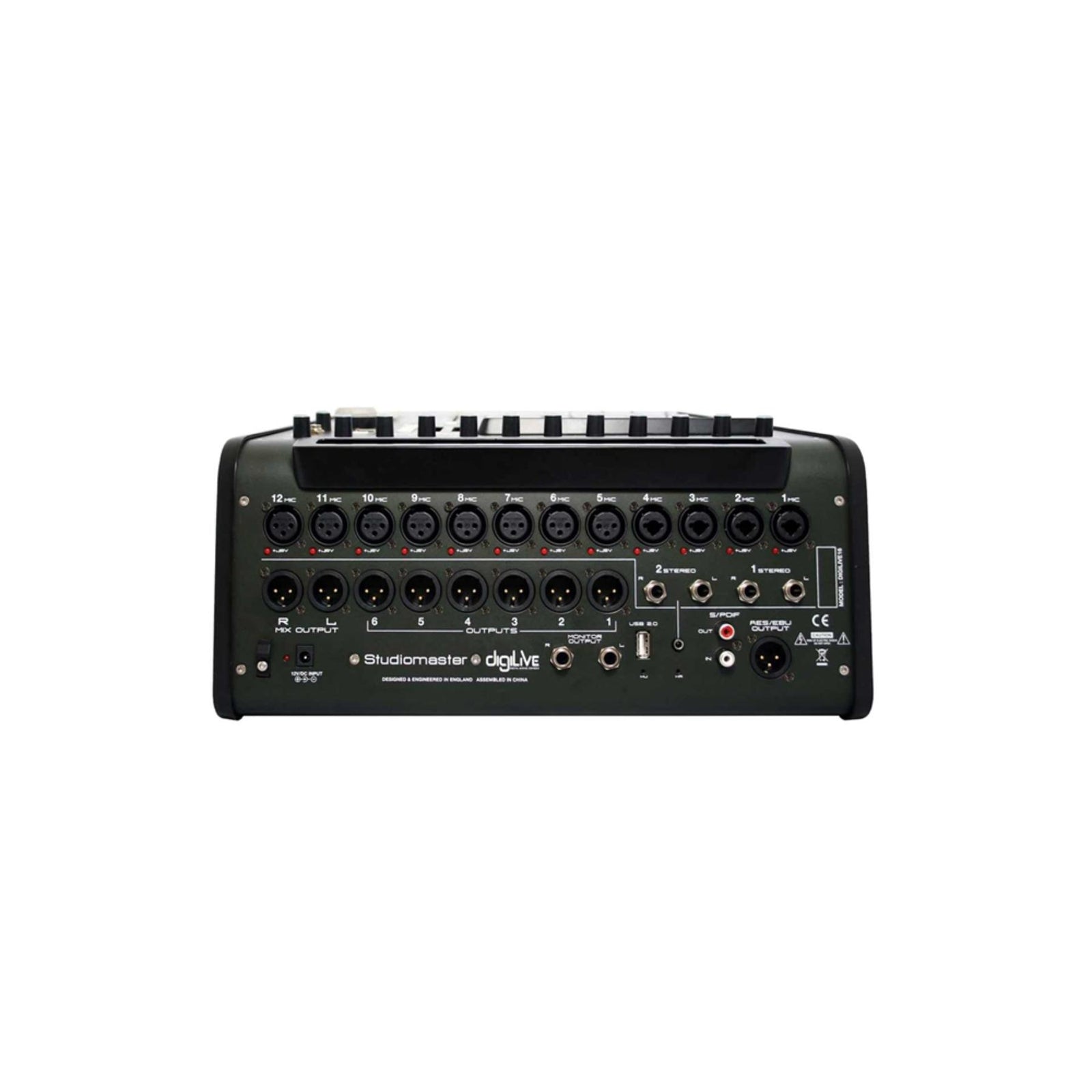

Rear Panel

· built in media player and recorder

· playback from either USB

· record from any smart output

Specifications
