SU20 Dual UHF Wireless headset belt pack 2

£139.00

SU20 Dual UHF Wireless headset belt pack 2

£139.00
Earn 69 Reward Points. Learn More...

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

- +
Order in the next to get it by
Details
  • SKU: 5015972216002
  • Brand: chord
  • Type: Mics - Wireless
  • Availability: Out stock
Description

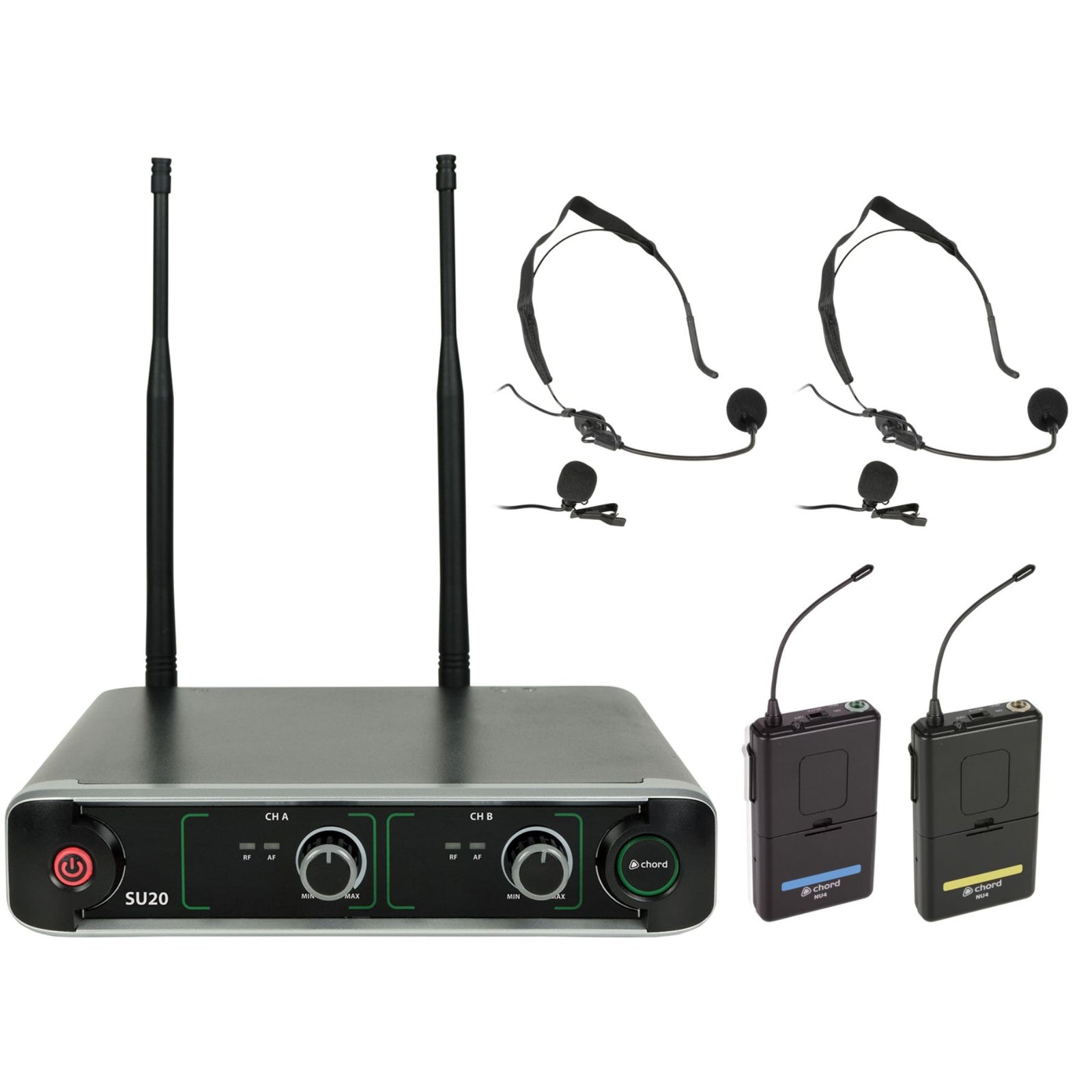

wirelessSU20 Compact Dual UHF Microphone Sets

Frequencies 863.42+864.3 (171.917)

  • Up to 2 sets (4 microphones) can be used together
  • Available in handheld or belt pack versions with 2 carrier frequency options
  • Compact half-rack receiver
  • Front or rear mountable antennas
  • Supplied with power adaptor and 4 x AA batteries

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

  • Power supply14Vdc 350mA (adaptor supplied)
  • Antenna connectionBNC
  • Batteries4 x AA (2 per transmitter) included
  • Range60m
  • Microphone : polar patternCardioid (handheld, neckband or lavalier)

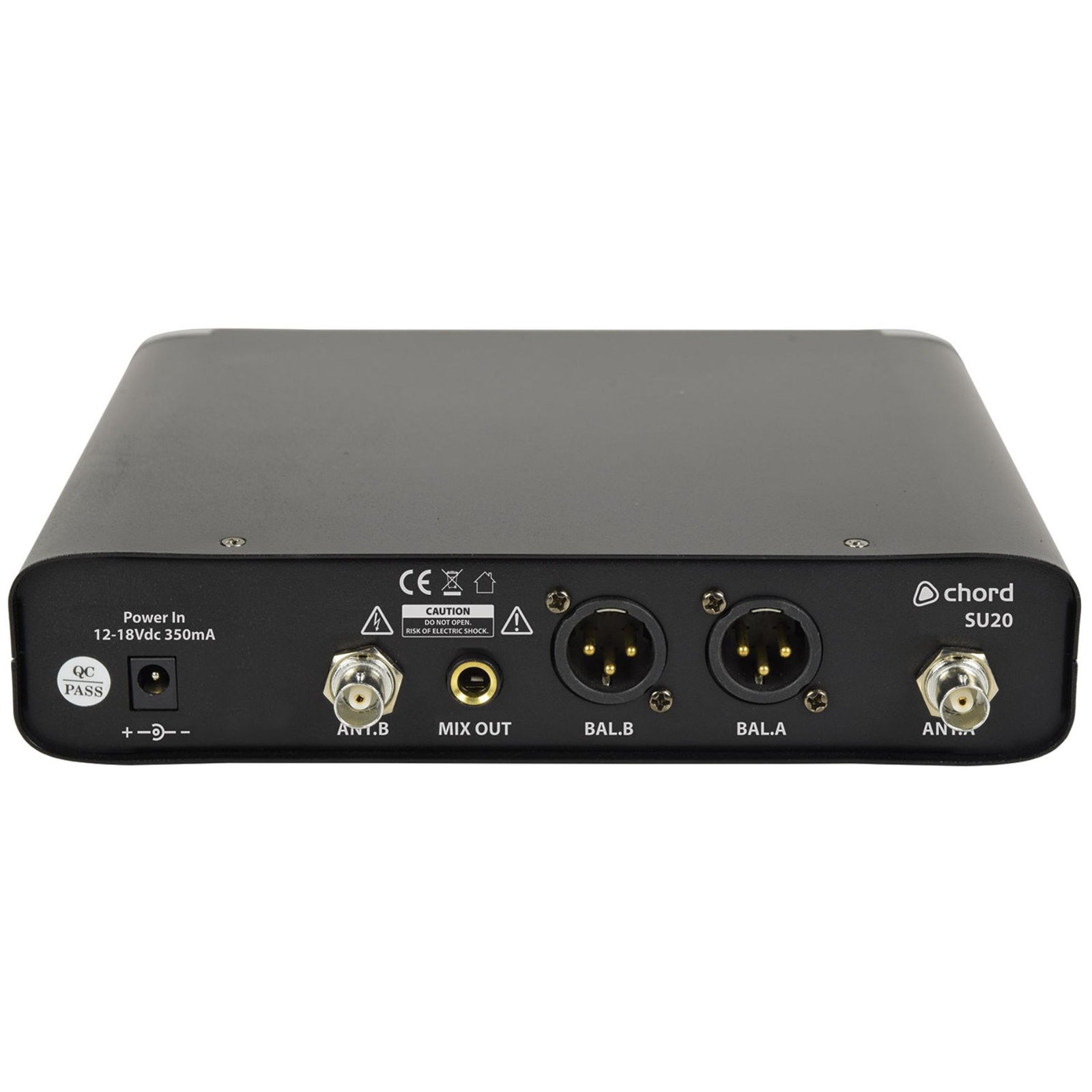

  • Output connections2 x balanced XLR, 1 x unbalanced 6.3mm jack
  • Output impedance2.2k Ohms
  • Output level400mV (balanced), 200mV (unbalanced)
  • Frequency response50Hz - 18kHz (±3dB)
  • S/N ratio>80dB
  • THD<0.5% @ 1kHz
  • Dimensions : receiver203 x 187 x 42mm
  • Weight : receiver845g
