MG-101 Multi-Effect Pedal

• Real-time controls and full colour display
• Built-in tuner, metronome, drum machine and looper
• TSAC-HD amp models and IR cabinet simulation
• Fully featured multi-FX with10 independent signal blocks
• USB recording interface and editing via QuickTone software
• Assignable expression pedal

Description

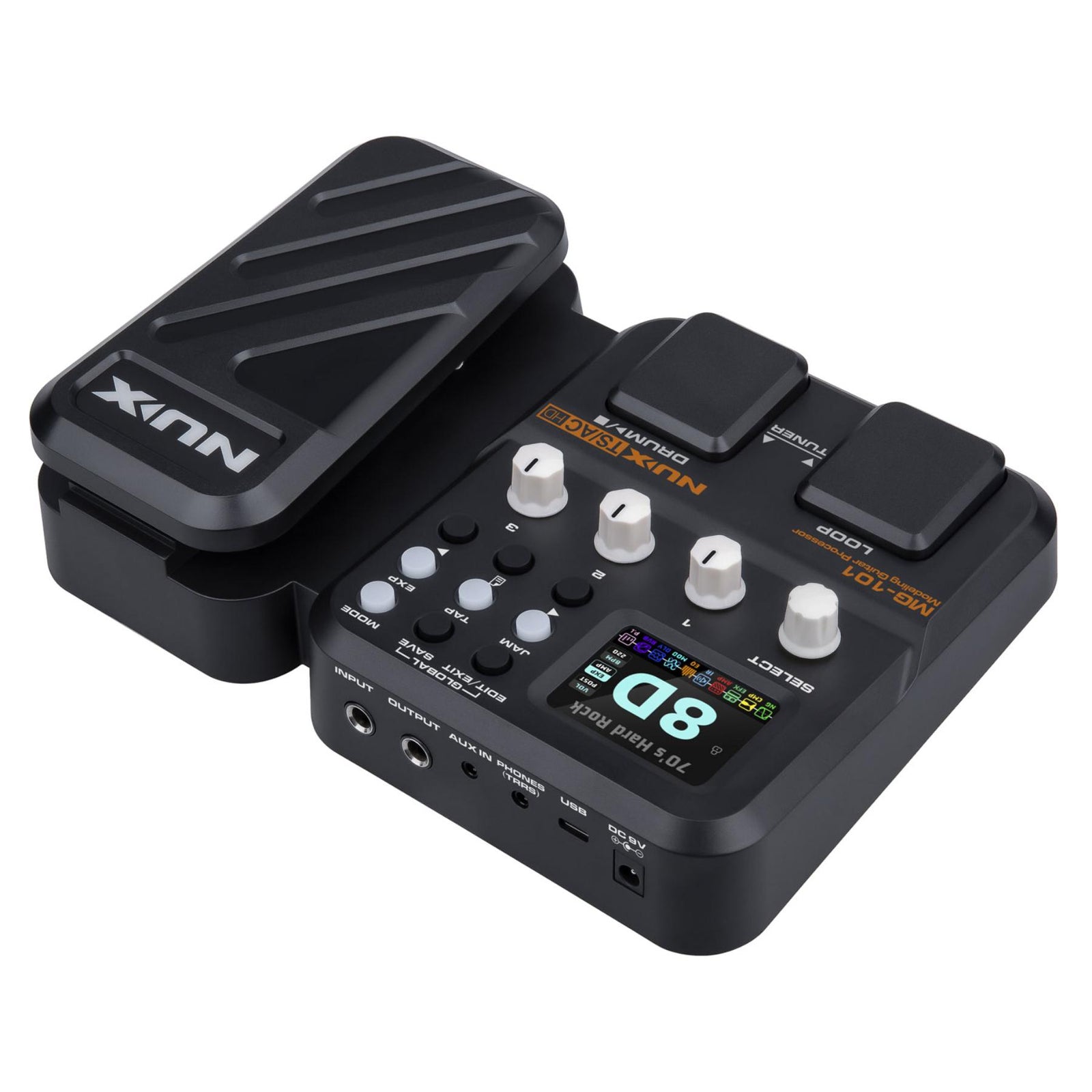

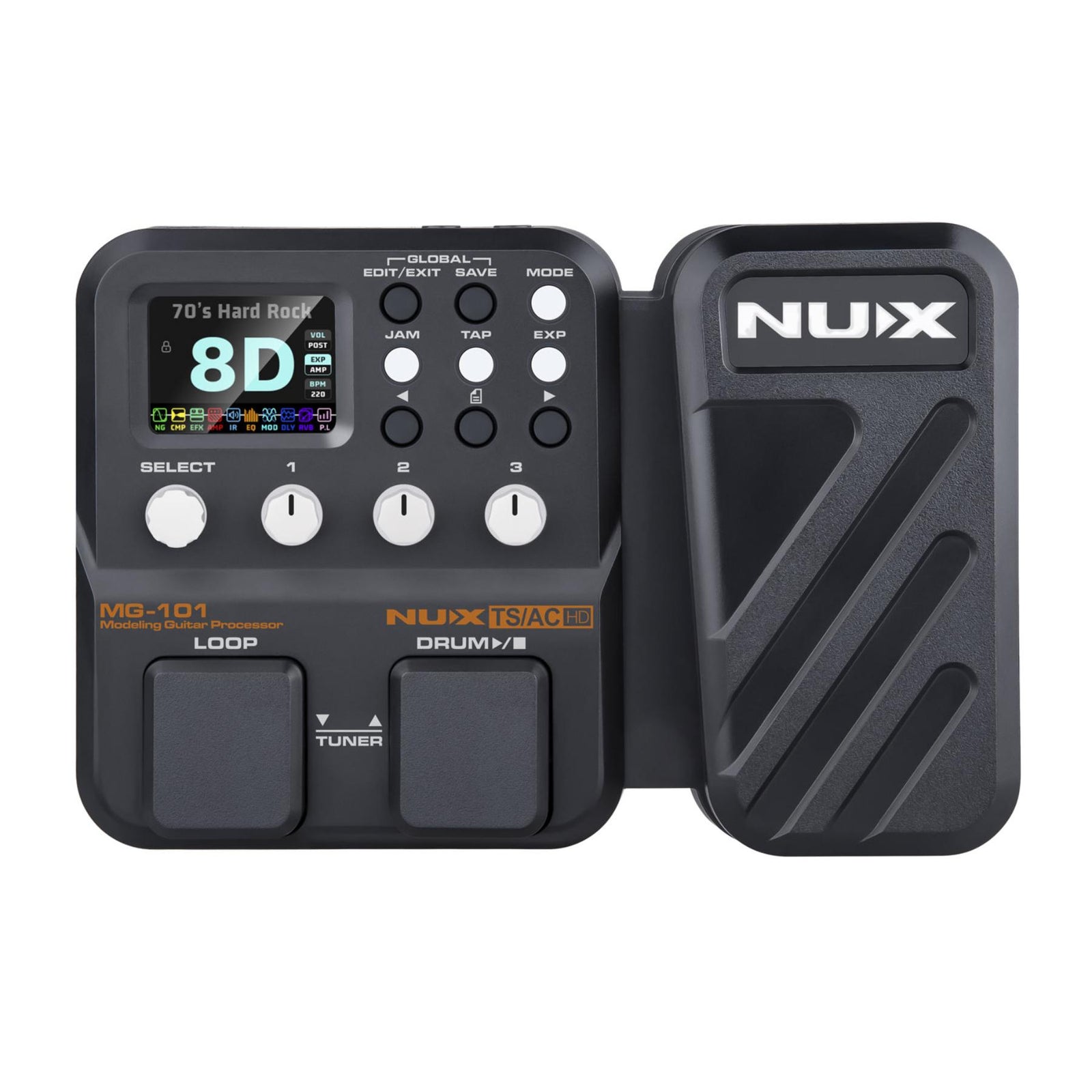

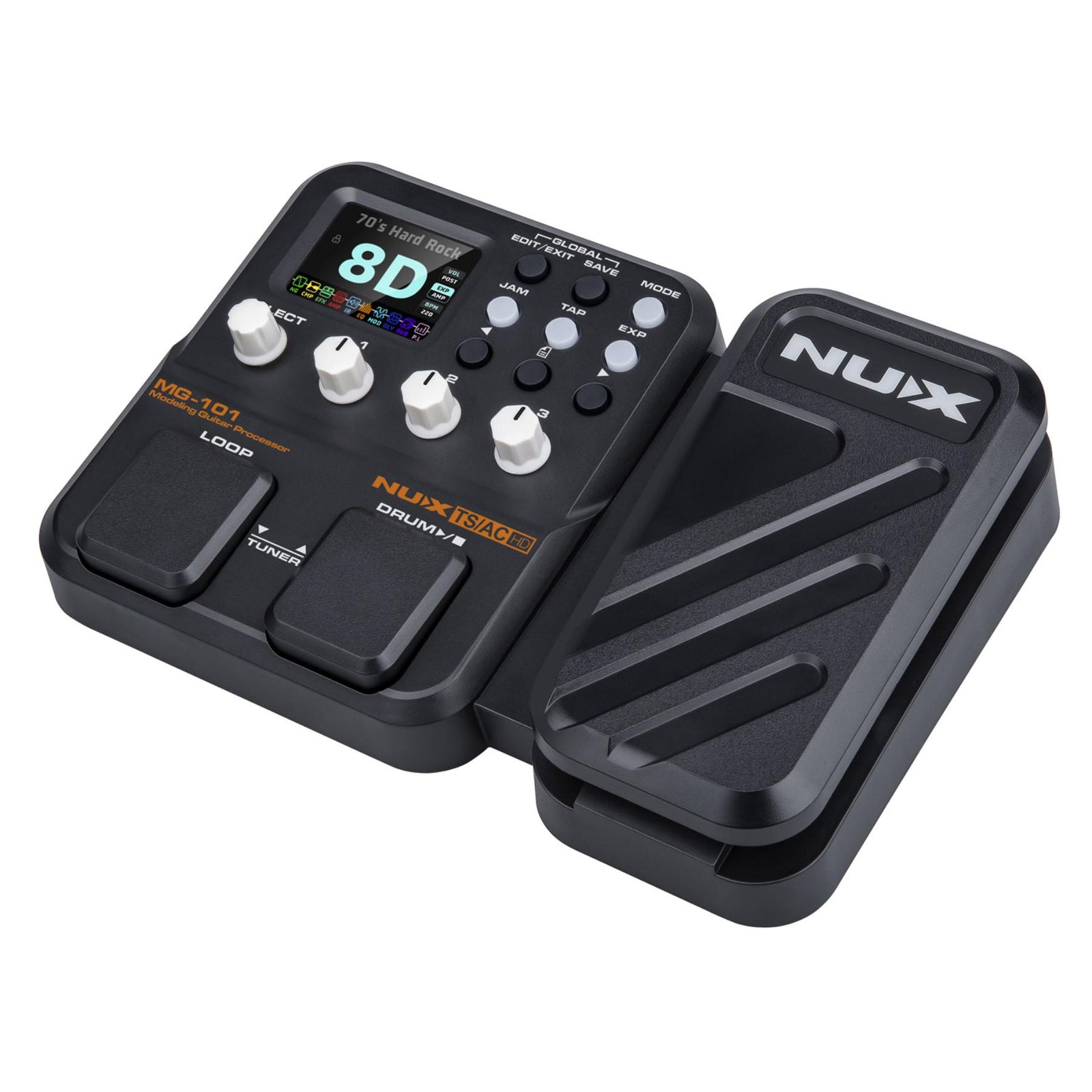

MG-101 is a complete guitarist's tone companion in a compact yet versatile floor unit. Hiding inside the minimalist housing is a full suite of amplifier tones and a huge palette of guitar and bass effects across 10 distinct audio processing blocks.

Amp modelling is based on TSAC-HD White Box Amp Modeling Technology, which delivers high definition analogue circuit simulation for pro quality guitar tones, with speaker cabinet emulation processed via an impulse response (IR) loader with 25 internal models and 12 additional user slots for importing your own files.

A built-in expression pedal covers wah and swell effects amongst other possibilities. All settings can be edited onboard with parameters shown on the full colour display or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations for recalling at will. In addition to the internal metronome, the built-in Jam function has a fully featured drum machine and 30 second stereo (60s mono) phrase looper.

To integrate with a DAW studio suite, the USB also functions as a high quality audio interface, completing the studio-ready guitar rig. The main output can deliver stereo or mono audio directly to a PA or to guitar amplifiers, with a separate TRRS minijack output for headphones or 2-way connection to a smart phone for live streaming.

Without breaking the bank, you can have world-class amp modelling and effects with all the essential tools a recording and gigging guitarist needs in a portable and convenient package.

Specifications

• Power supply9Vdc DC5521 pin-negative (power adaptor included)
• Current consumption<250mA

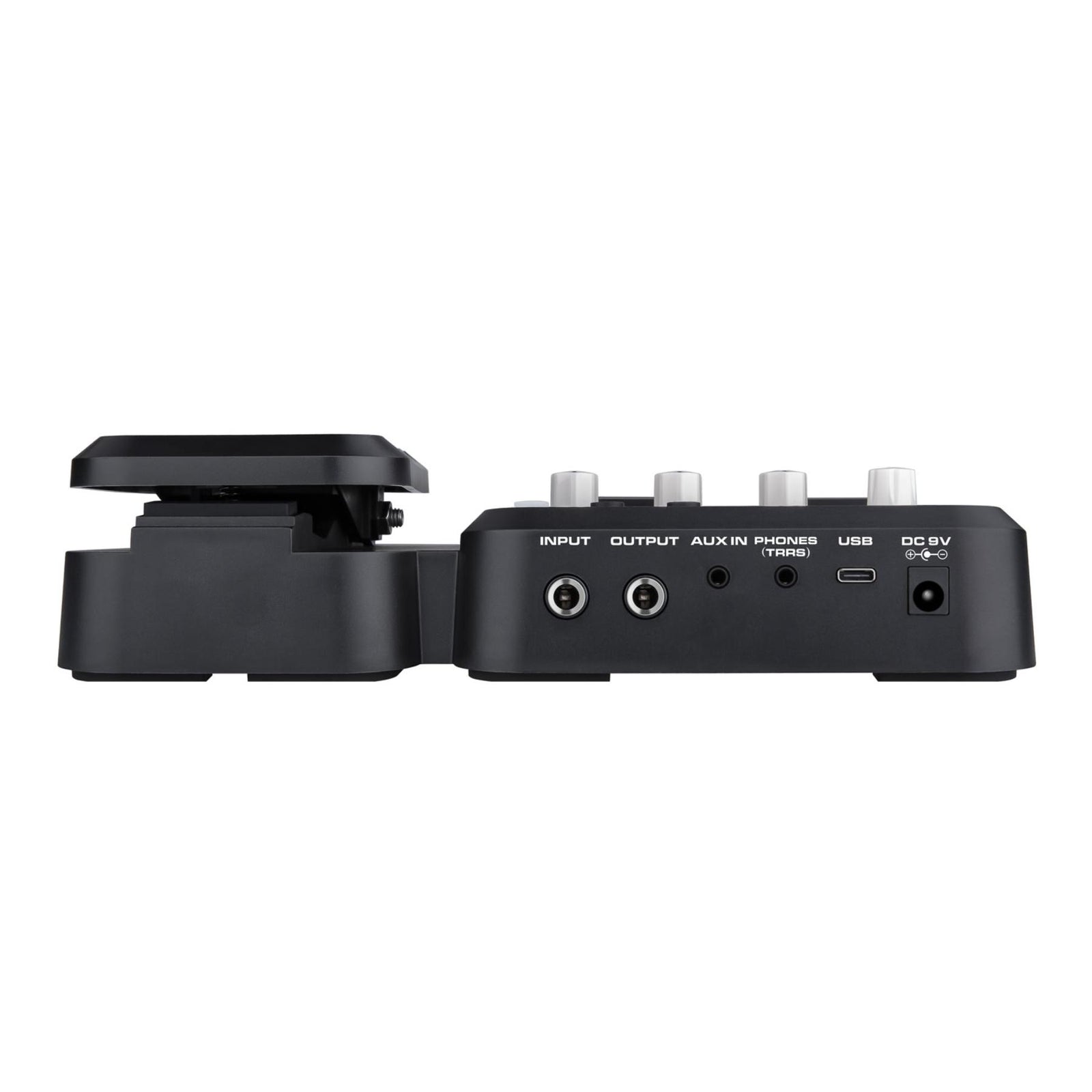

• Inputs6.3mm jack (guitar), 3.5mm jack (aux input)
• USB portUSB-C audio interface and PC/Mac editing
• Sampling format48kHz, 32-bit
• Frequency response20Hz - 20kHz (±1dB)
• Output6.3mm stereo jack line out (to amp or mixer)
• Headphone : connector3.5mm jack (TRRS for smartphone livestreaming)
• Input impedanceGuitar 470k Ohms, Aux 25k Ohms
• Dynamic range 104dB
• Output impedance 1k Ohm
• Dimensions 289 x 160 x 71mm
• Weight 920g
