£85.00
/
Tax included. Shipping calculated at checkout.
  • Free worldwide shipping
  • In stock, ready to ship
  • Inventory on the way

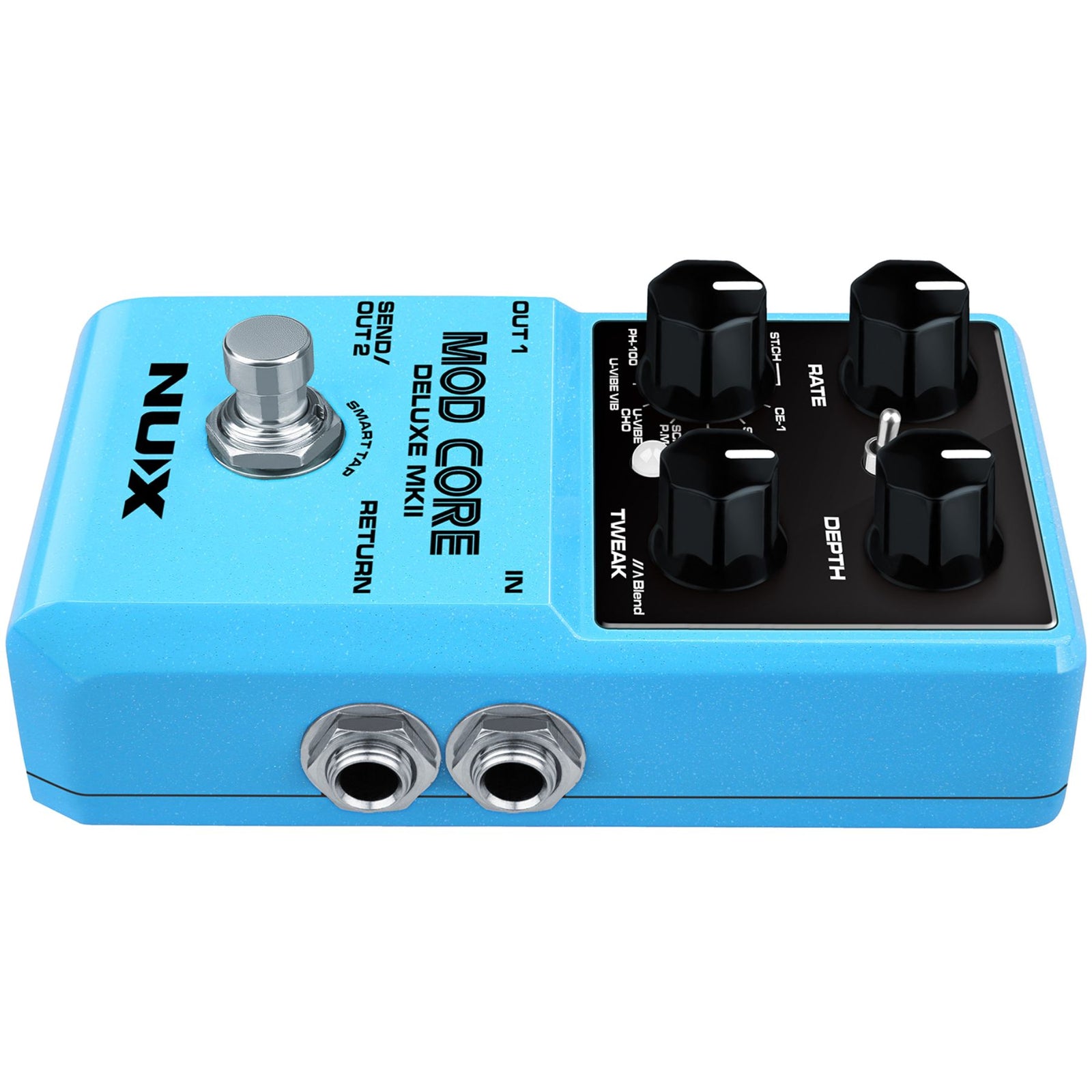

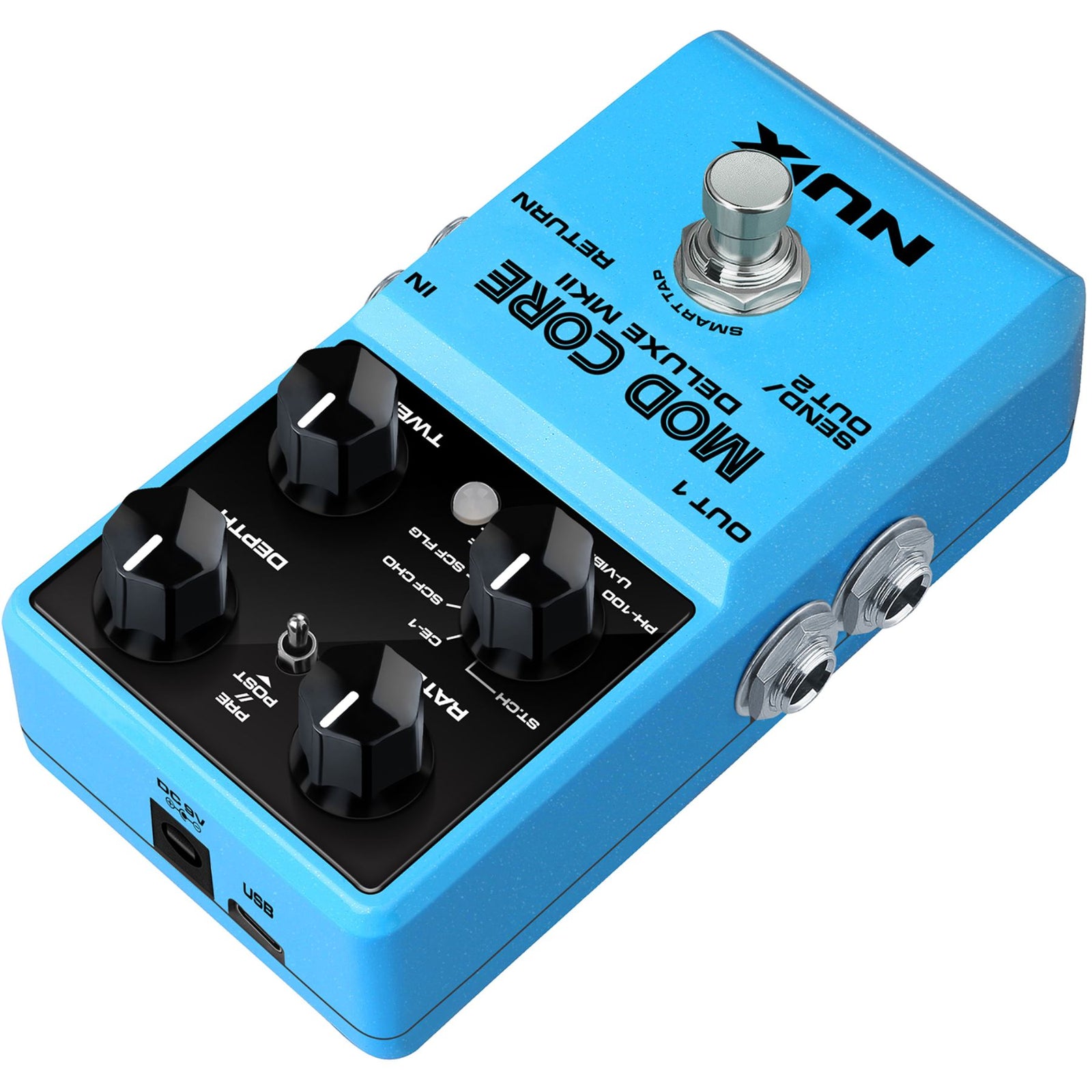

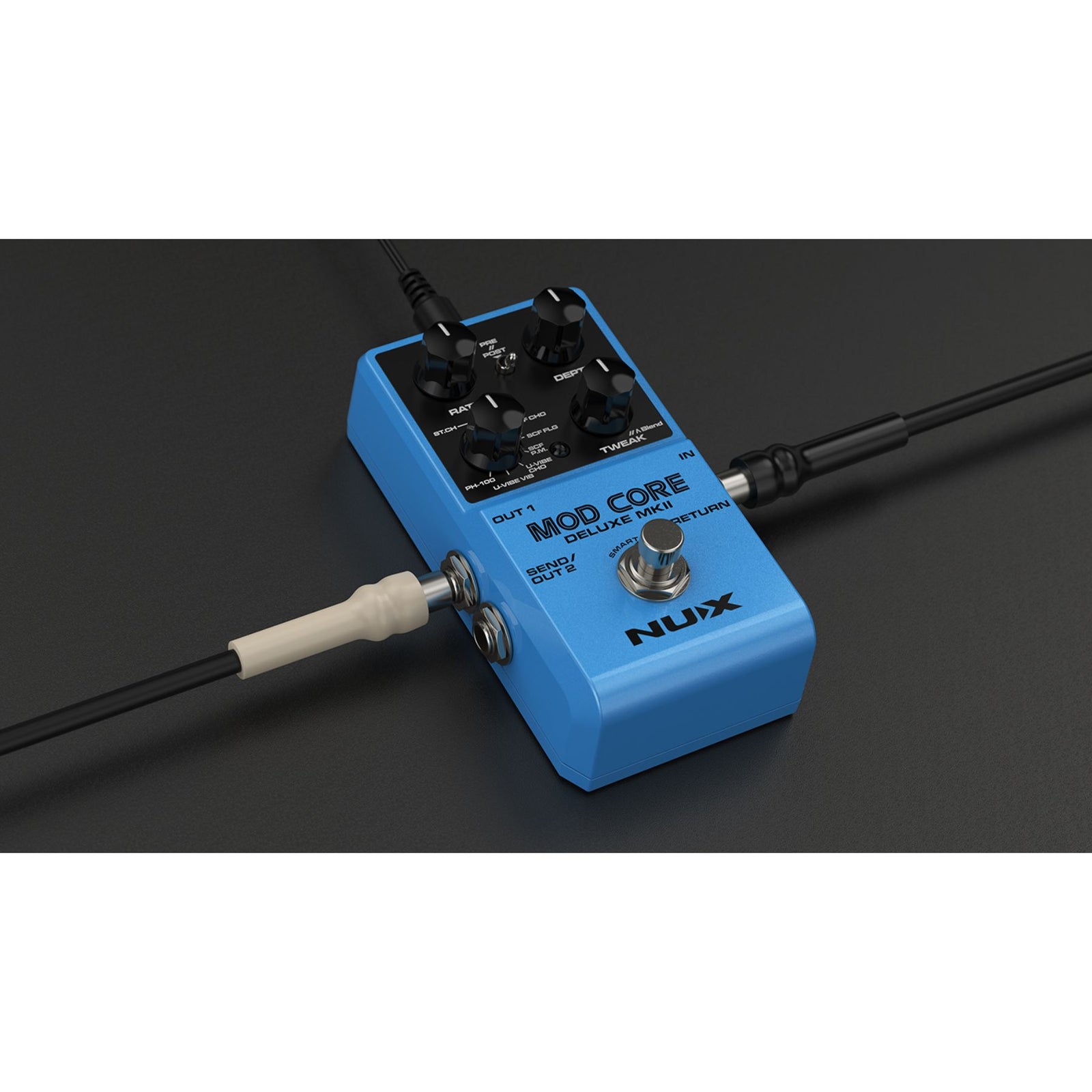

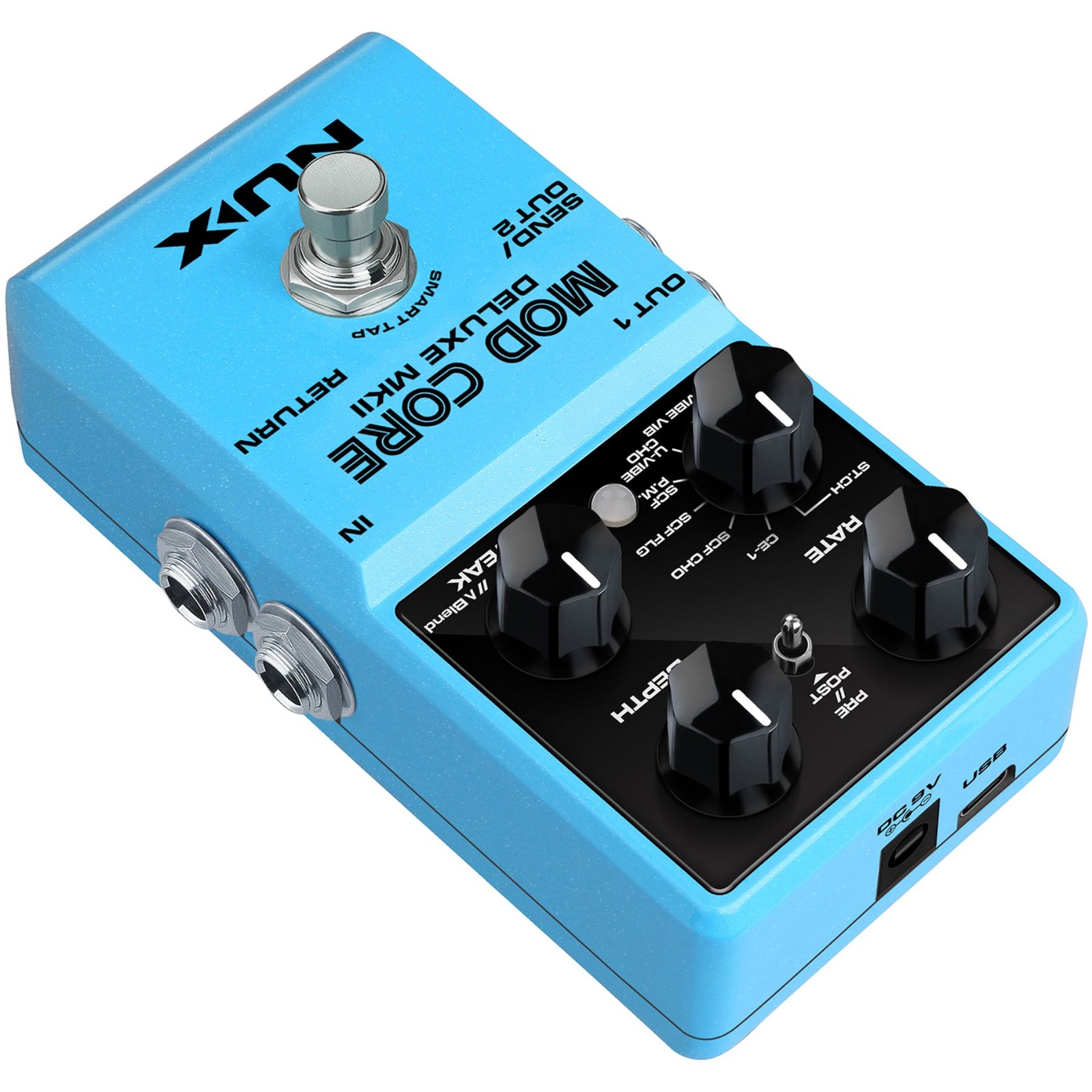

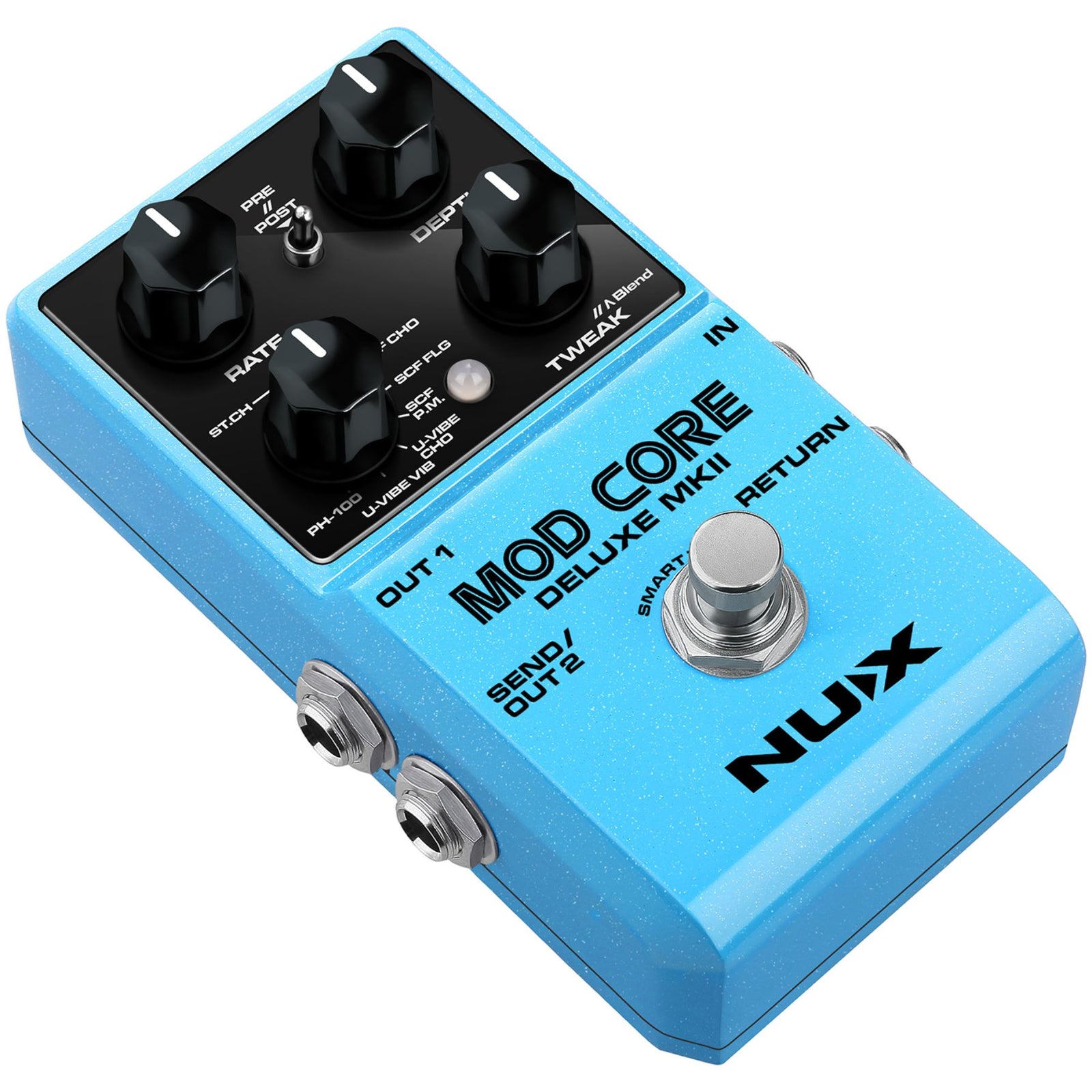

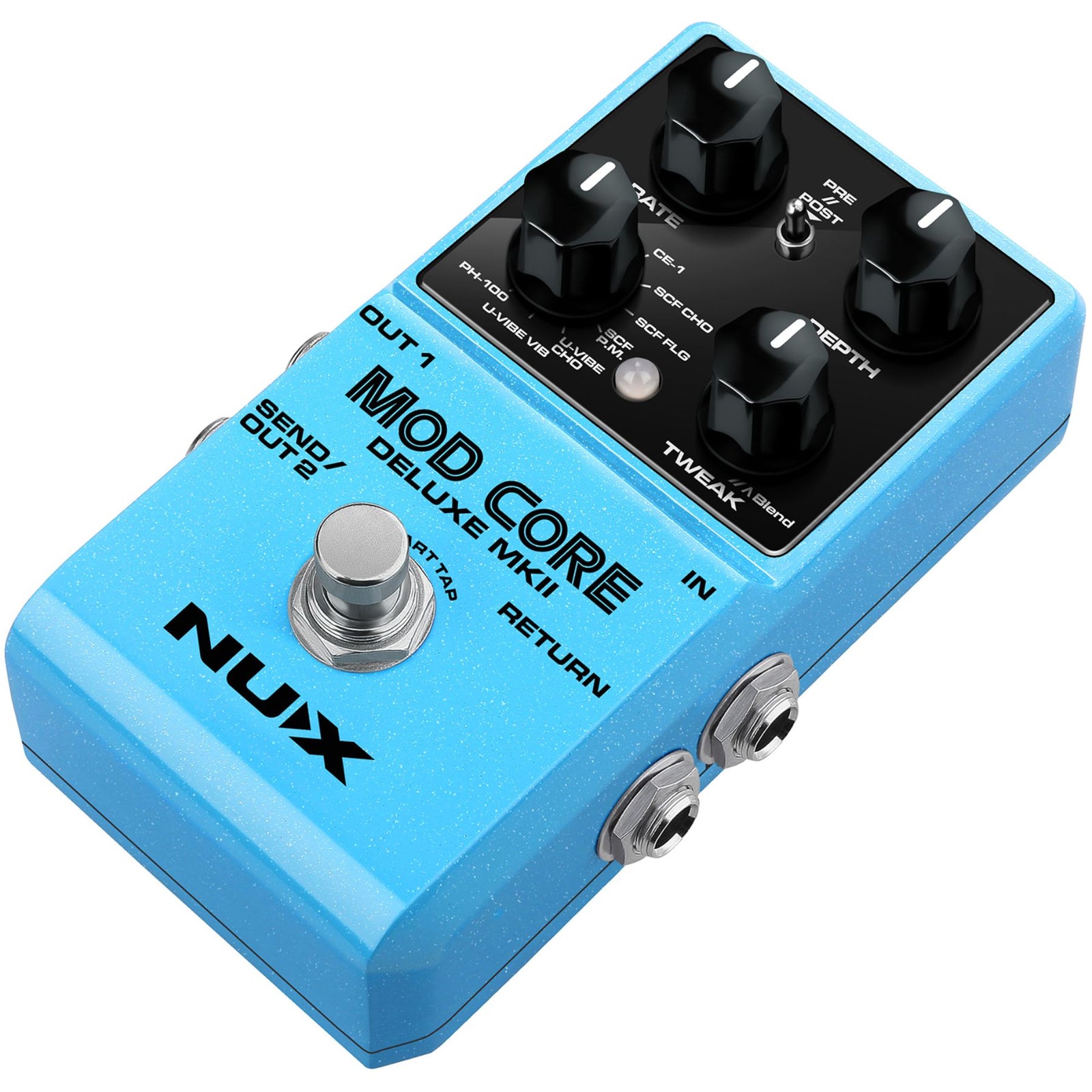

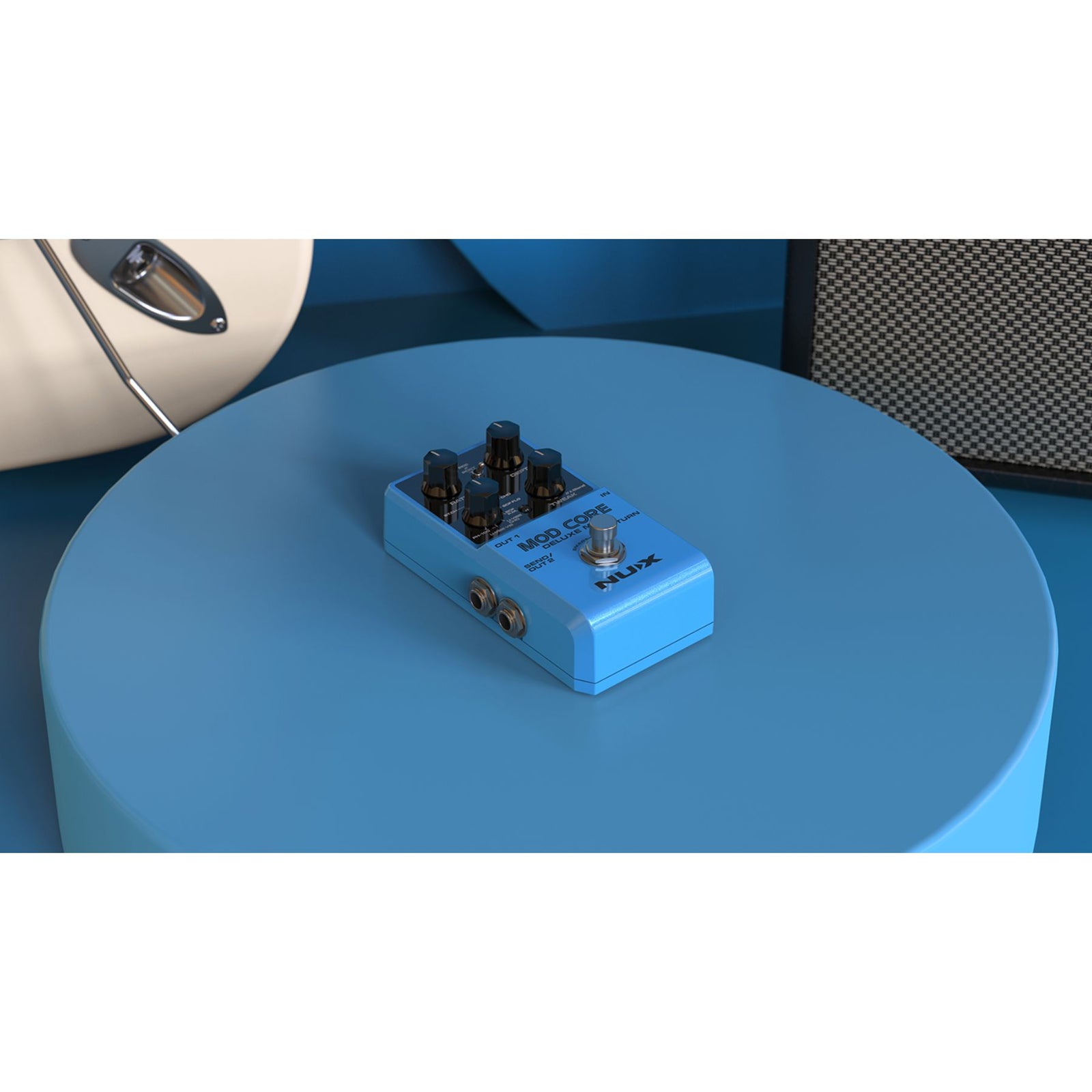

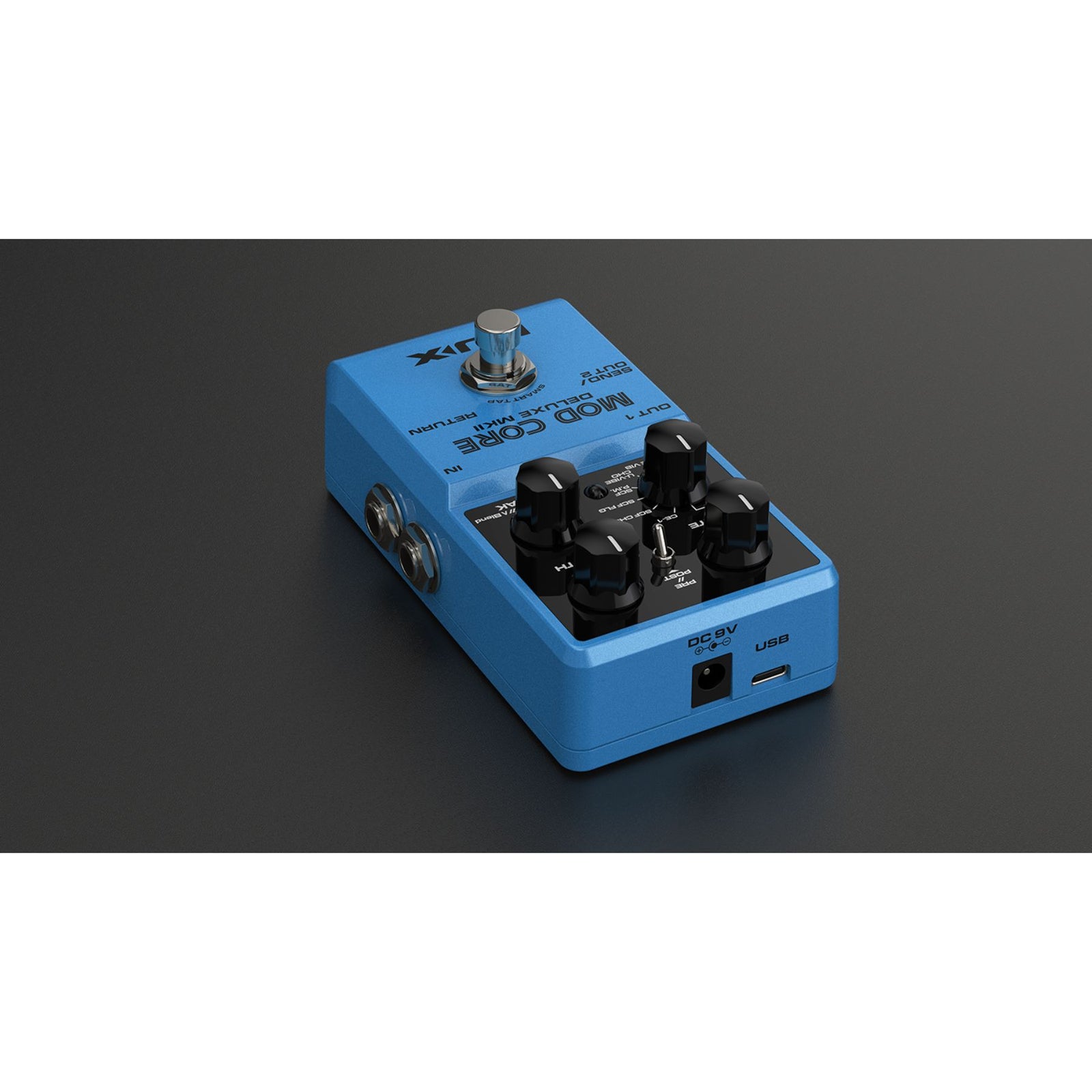

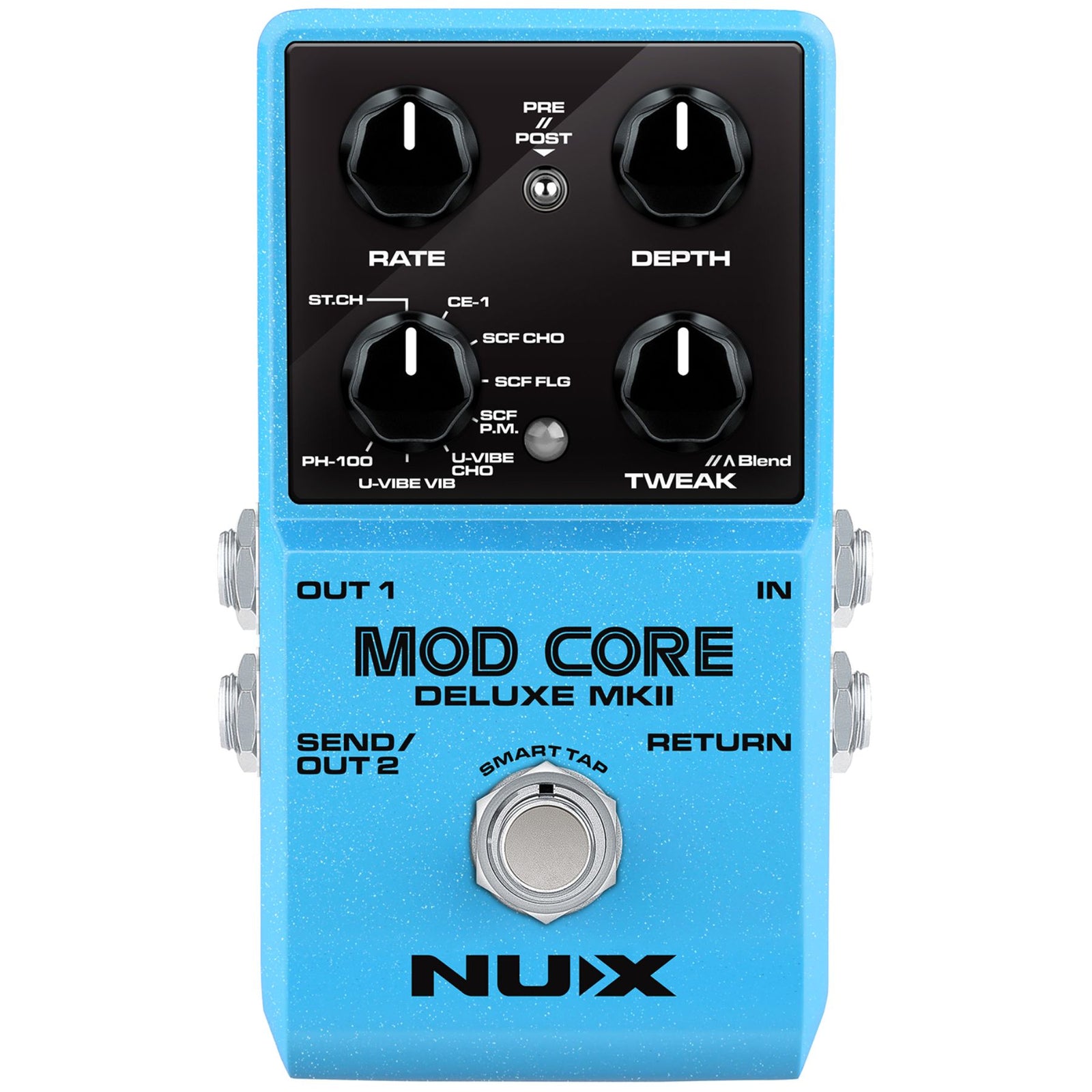

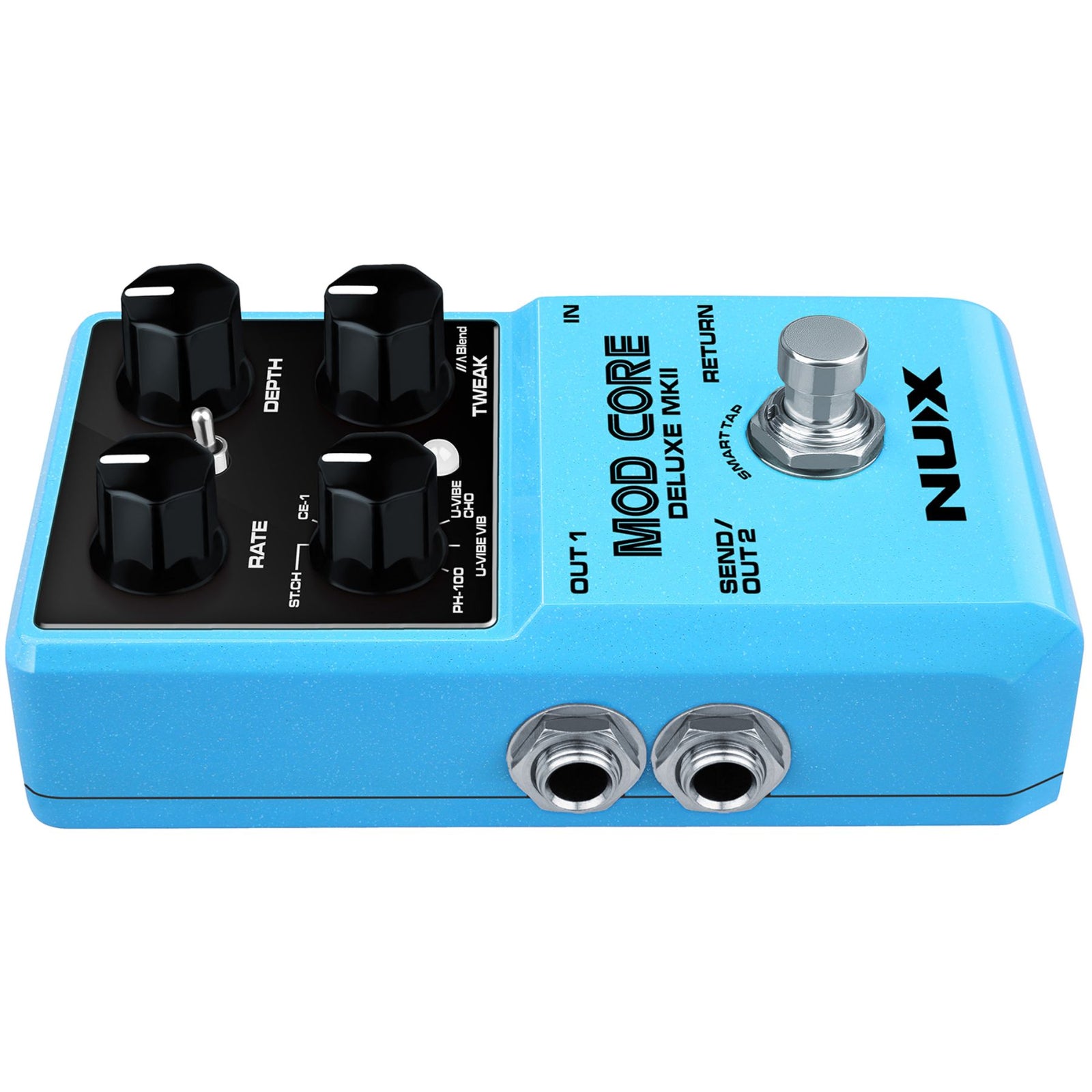

Mod Core Deluxe MkII Pedal

Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models range from chorus to phasing and vibrato, with Rate and Depth controls and an additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode. Rate can also be adjusted using a Tap Tempo function of the main footswitch.

Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with send/return loop. When using the loop, there are 3 routing options for pre, parallel and post effect placement. If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high quality pedals in a single compact stomp box format.

  • 8 distinct modulation effect models
  • Analog dry signal path for low noise and zero latency
  • Mono or stereo output
  • Built-in send-return loop
  • 4 parameter control for effect settings
  • USB-C for firmware updates
  • Power supply 9Vdc (PP3) battery or optional power adaptor
  • DC input connection DC5521 jack (for optional adaptor - pin-negative)
  • Current consumption <120mA

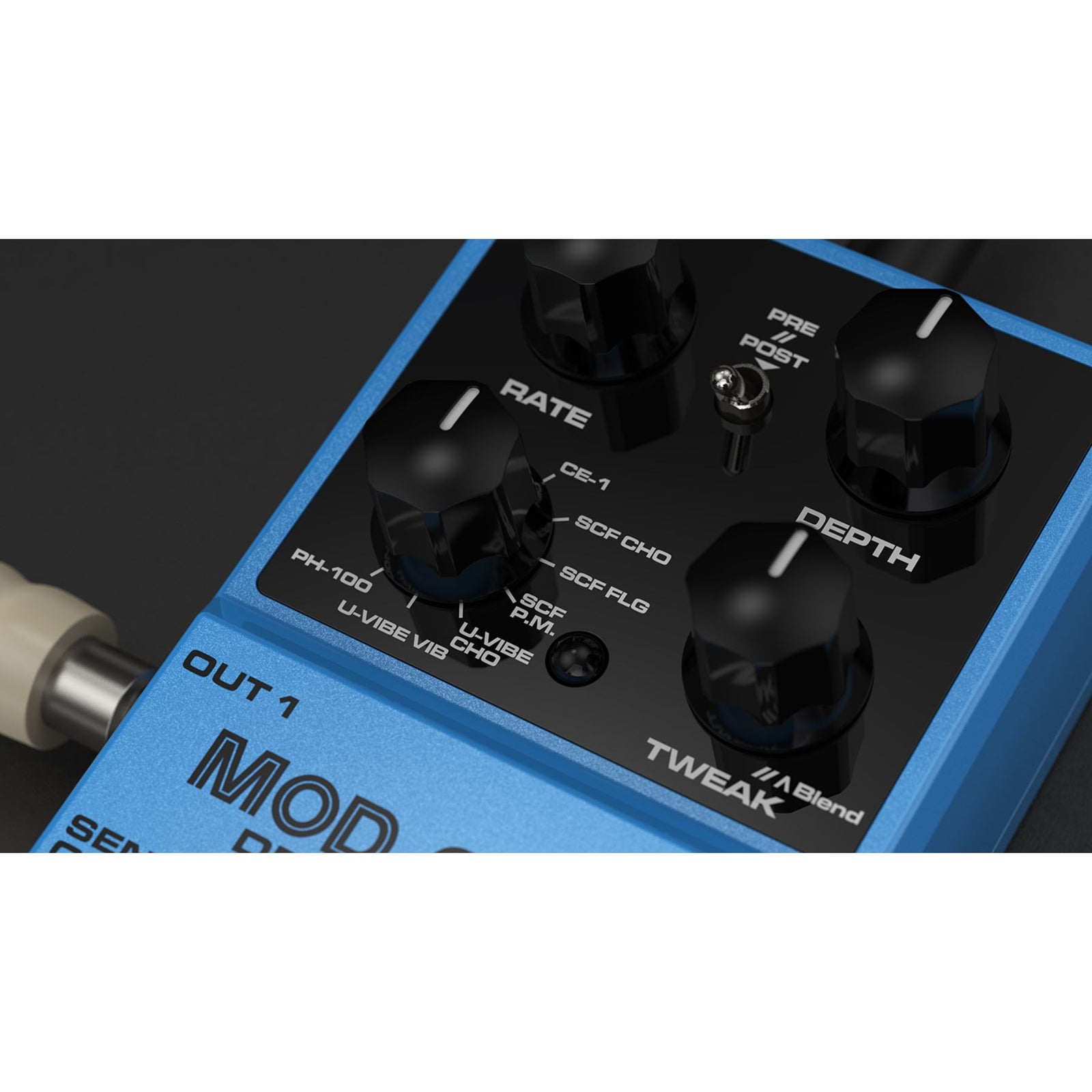

  • Controls Rate, Depth, Tweak & Mod type
  • Modes ST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100
  • Inputs Instrument in & Loop return (6.3mm mono jack)
  • Outputs Out1 & Out2/Loop send (6.3mm mono jack)
  • Tempo range50-200 bpm
  • Sampling format48kHz, 24-bit
  • Input impedance1M ohm
  • Output impedance1k ohm
  • Dynamic range104dB
  • Dimensions122 x 72 x 47mm
  • Weight270g
